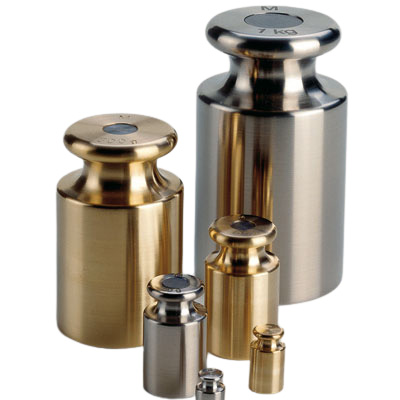

Precision Weights Class M1
Precision Weights Class M1 200g – 1mg (M1)
Adjustment, test and calibration instrument for commercial scales (Class III) and for quality assurance for scales with a number of steps < 30.000. Weights for use in the calibration and verification of weights of classes M2 and M3. All 3 classes depending on accuracy requirements as load authorities for tension, compression and torsion determinations.
| 200g to 1mg |
TOLRENCES (in mg+/-) | |
| Nominal value | Class M1 | |
| 200 g | 10 | |
| 100 g | 5.0 | |
| 50 g | 3.0 | |
| 20 g | 2.5 | |
| 10 g | 2.0 | |
| 5 g | 1.6 | |
| 2 g | 1.2 | |
| 1 g | 1.0 | |
| 500 mg | 0.8 | |
| 200 mg | 0.6 | |
| 100 mg | 0.5 | |
| 50 mg | 0.4 | |
| 20 mg | 0.3 | |
| 10 mg | 0.25 | |
| 5 mg | 0.20 | |
| 2 mg | 0.20 | |
| 1 mg | 0.20 | |
Precision Weights Class M1 (50kg to 500g)
Adjustment, test and calibration instrument for commercial scales (Class III) and for quality assurance for scales with a number of steps < 30.000. Weights for use in the calibration and verification of weights of classes M2 and M3. All 3 classes depending on accuracy requirements as load authorities for tension, compression and torsion determinations.
| 50kg to 500g |
TOLRENCES (in mg) | |
| Nominal value | Class M1 | |
| 50kg | 2 500 | |
| 20kg | 1000 | |
| 10kg | 500 | |
| 5kg | 250 | |
| 2kg | 100 | |
| 1kg | 50 | |
| 500g | 25 | |
Features and Specifications
Class：M1
Material：Stainless Steel, Brass
Process：Mirror/Mechanical Polishing
Application
Applicable Place: Laboratories, Pharmaceutical Factories, Scales Factories, etc. Applications Calibration for scales, balances or other weighing products.
Advantages
Stainless steel has the characteristics of resistance to weak corrosive media such as air, steam, water and chemical etching media such as acid, alkali and salt. The weight made with this material is also resistant to corrosion by corrosive media such as air, steam, water, and chemical etching media such as acid, alkaline, and salt. It extends service life and improves the accuracy of weights.
Parameter

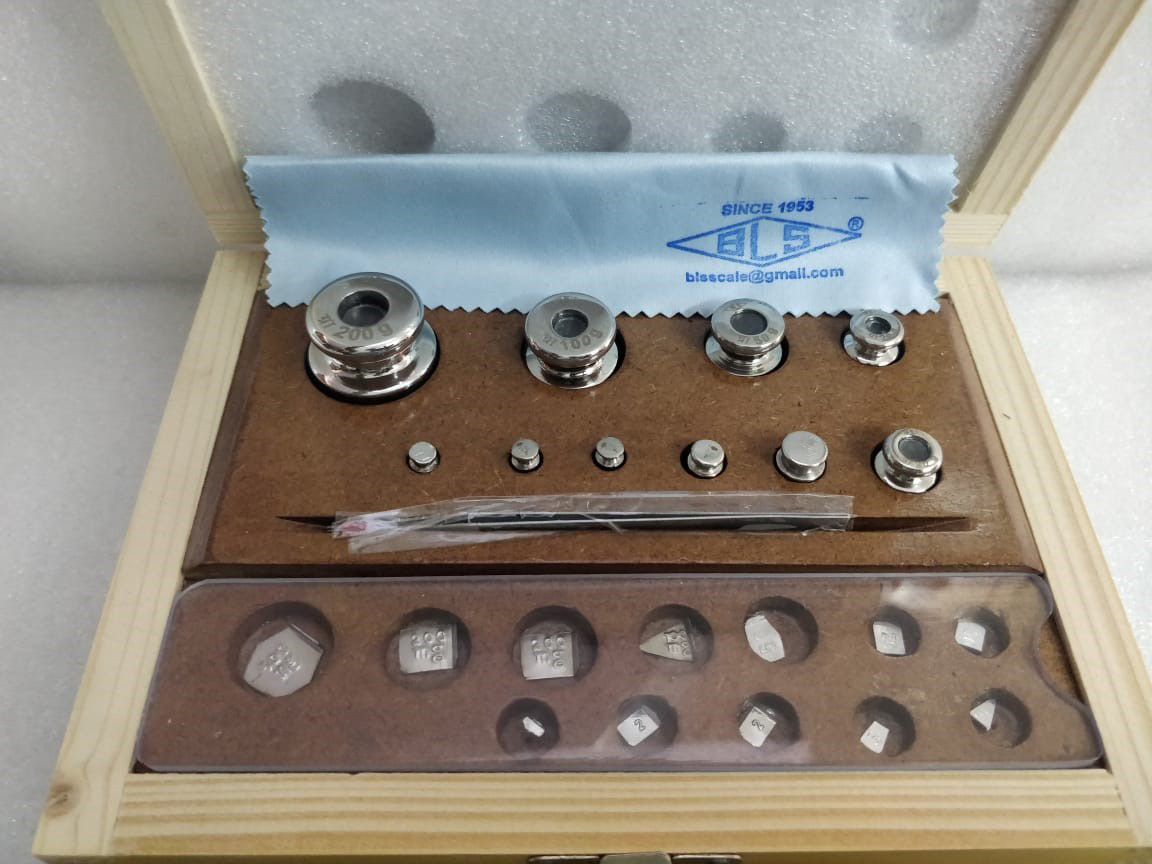

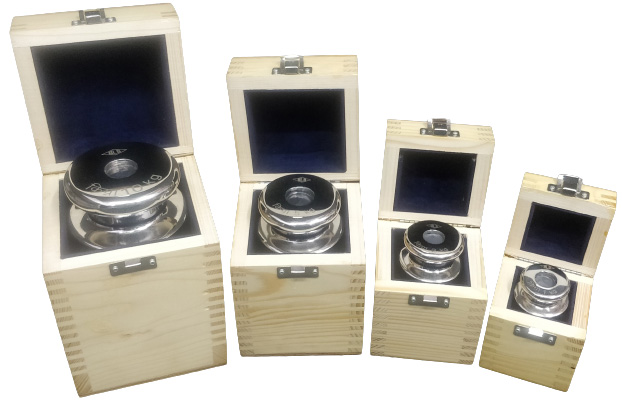

Package: Polished Wooden / Aluminium Case (Optional)
